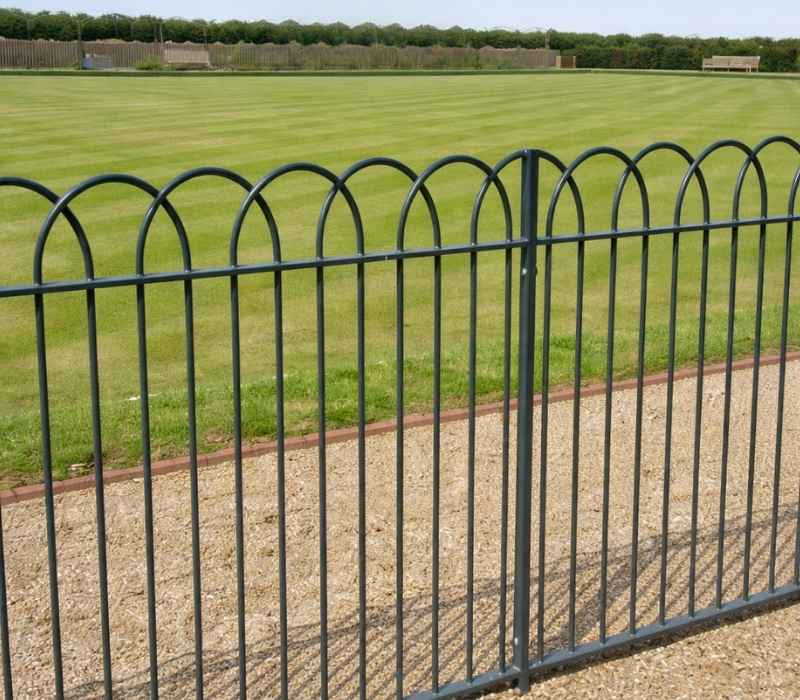

INTERLACED BOW TOP FENCING
FENCE HEIGHT DIMENSIONS
Produced from solid bar in all heights up to 2.4 metres.
FENCE HORIZONTAL DIMENSIONS
Available in Flat, Rolled Steel Channel section.
Intermediates, Corner and End and are available in a wide range of sizes and materials including: RHS, CHS and RSJ, with the provision to be stepped or cranked to suit site conditions, secured in concrete (supplied complete with two support legs per standard panel for concrete-in fixing) or base plated for surface mounting. All posts come with welded steel caps. A range of post head details available for all railings as an optional extra.
Panels are available as standard to 2.72m wide with centres of 2.75 metres straight and level, and welded in accordance with BS 1722 Pt9. Panels can also be made to suit your specific requirements: any length, straight or curved.
Standard gates are available or tailored-made to suit your requirements. All gates are supplied with adjustable hinges, pad-lockable drop-bolts, multi-holed
to suit site conditions and robust pad-lockable slide late.
Please note due to availability the above specification may be subject to change
